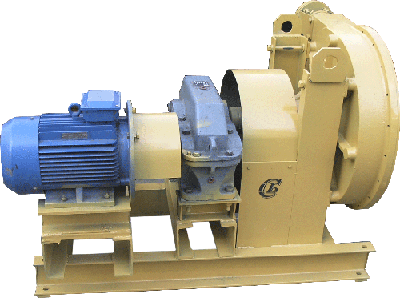

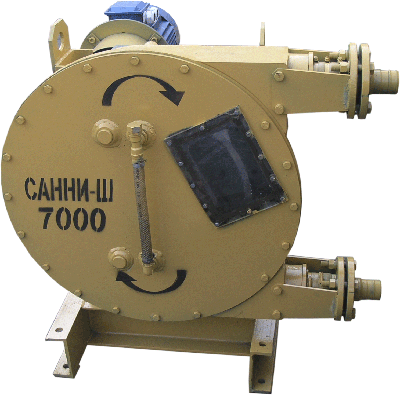

Peristaltic pump Sunny-SHN7000 for feeding foam concrete to height up to 60 meter
PUMP OF NEW GENERATION!
PRINCIPLE OF OPERATING THE peristaltic PUMP
While
rotating a rotor in glycerine, a shoe completely squeezes a peristaltic (operating pary
of the pump), located in circle inside the housing, and squeezes out pumped
liquid to the pipeline. In front of the shoe the peristaltic recovers its form and
soaks liquid. Abrasive fractions are pressed into the elastic interior layer of
the peristaltic, and then they are pushed into the stream without damaging the peristaltic.
ADVANTAGES OF THE PERISTALTIC PUMP
- Reliability, simplicity in operating.
- The only wearing part is a peristaltic, which is changed without dismantling the
pump after 500 – 2000 hours of operation, depending on properties of pumped
medium.
- Smooth flow-type part without valves and canister raks. Pumped medium does
not contact with moving metal parts.
- Structure of pumped medium is not damaged.
- Absolutely hermetic, there is no compression.
- Possibility of reversible operation. Change of rotating direction activates
self-cleaning of the pump.
- Constant feeding.
- Possibility of “dry” operation, i. e. liquid in the flowing part is not
obligatory.
- Possibility of pumping liquid-gas mixtures.
- Self-pumping up to 9 m. without preliminary filling.
- Suction of pored liquid from horizontal surfaces.
It does not damage the structure of foam concrete.
APPLICATION:
- Construction (pumping constructional mixtures, foam concrete, pitches,
hardeners for resin-bonded chipboard)
- Aeration
- Sewage treatment plant
- Chemical industry (aggressive medium)
- Pulp-and-paper industry
- Dozing;
PUMPING PRODUCTS:
- Highly abrasive,
- Highly viscous,
- of great density,
- chemically active,
- damaging because of mechanical influence;
Specifications:
|
Maintaining personnel |
1 person |
|
Weight in unloaded condition |
435kg |
|
Capacity of pumping |
7 cubic meter per hour |
|
Range of mixture feeding |
150m. |
|
Height of mixture feeding |
60m. |
|
Dimensions |
1395x975x880mm |
|
Diameter of inlet and outlet branch pipes |
50mm |
|
Hydraulic drop |
up to 1,5 MPa |
|
Power voltage |
380V |
|
Consumed power КW\h |
7,5КW |
Description of gerotor type pumps become obsolete.
Not produced
Gerotor type pump Sunny-GN4000 is
a high-duly gerotor type pump for foam concrete, paint and plaster mixtures,
paste fillers, raw sludge and so on.
NOT PRODUCED!!!
Purpose:
for head transporting foam concrete, paint and plaster mixtures, paste fillers,
raw sludge and so on. As a gerotor type pump transports pumped mixtures
without pressing it, the pump is absolutely suitable for pumping foam concrete.
Foam in concrete mass is preserved. The device pumps everything that can flow
low or highly viscous liquids with fibres or firm fractions of size up to 5 mm.- Composition and principle of operating:
it is based on using a gerotor
type mechanism, where a rotor (screw propeller) moves like a planet moving in a
stator (iron ring) and forces out the volume of transported medium, being in
closed cavities between the rotor and stator.
- Competitive advantages of the gerotor type pump Sunny-GN4000
:
- capacity is 4 cubic meter per hour
- it is delivered with a bunker of volume 250 litres, that provides the
possibility to use it not only in composition of a Mortar-mixing machine,
but separately as well.
- universalise – it is possible to pump foam concrete, mixture for plaster
and laying and any other mixtures. As there is a bunker, it does not demand
any other devices.
Download pdf file with this information
